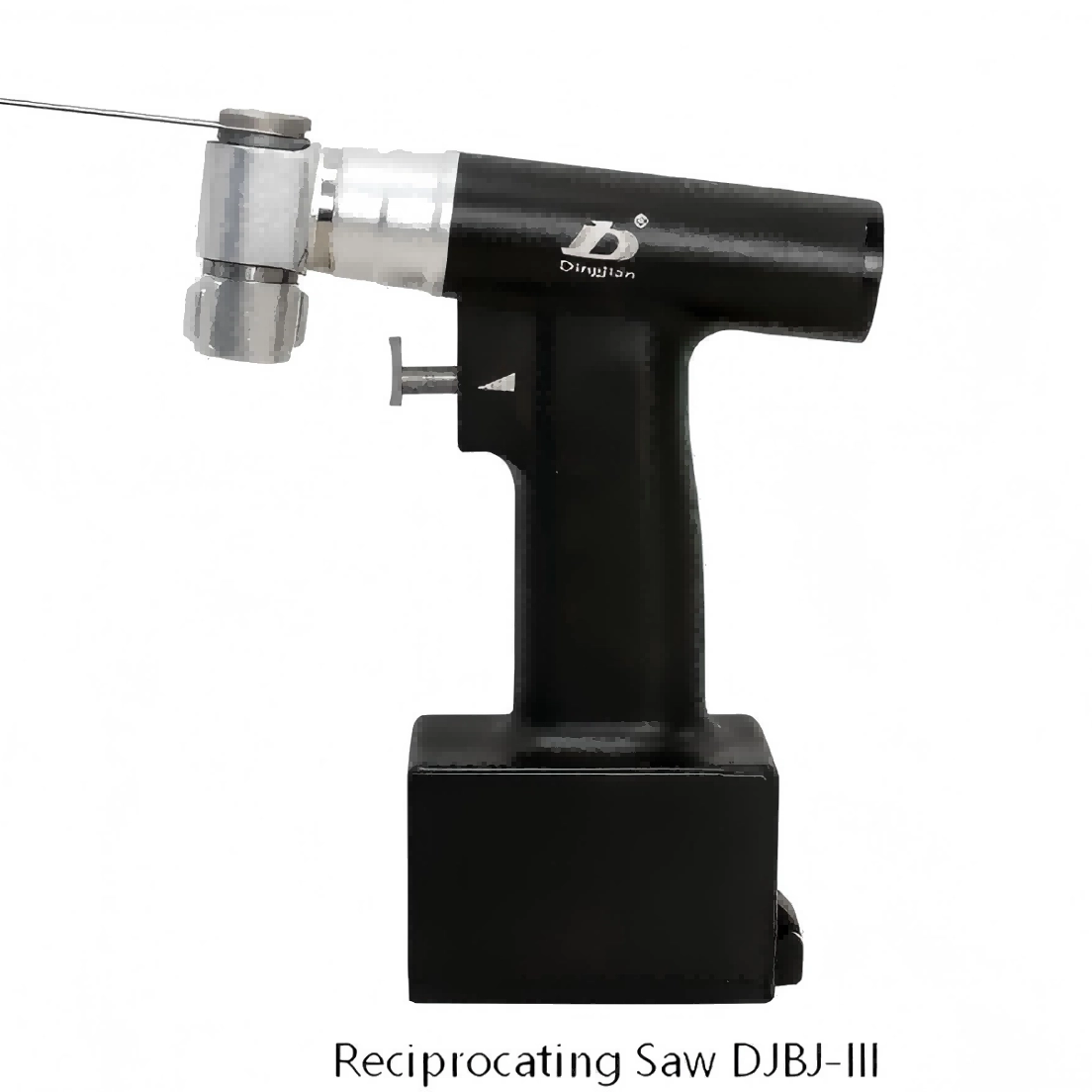

Reciprocating Saw Orthopedic tool

Reciprocating Saw DJBJ-III Configuration

1. Main Host: 1 unit
2. Fast Charger: 1 unit
3. Battery: 2 pieces
4. Driver: 1 unit
5. Sterilization Channel: 1 piece
6. Outer Packaging Case: 1 unit
7. Reciprocating Saw Blade: 3 pieces

Model & Technical Parameters

1. Model: DJBJ-III
2. Charger Input Voltage: AC (100V~240V) ±10%, 50HZ/60HZ
3. Reciprocating Frequency: 0-16000 times/min ±10%
4. Swing Amplitude: 4°~6°
5. Host Temperature Rise: ≤25℃ (Surface temperature ≤50℃)
6. Noise Level: ≤75dB
7. Maximum Output Power: ≥400W
8. Battery Specification: 12V Lithium Battery, 2500mAh
  • DJBJ-III

  • Dingjian

Availability:

1.Superior Power & Durability
Adopting brushless motor and lithium battery, the unit features compact size, high torque and longer service life. The lightweight, high-capacity lithium battery supports up to 3 hours of continuous no-load operation, fully accommodating various complex surgeries.


2. Integrated Detachable Control & Battery Design
As the first domestic device with integrated control system and battery, it differs from conventional models with non-removable built-in control systems. The detachable integrated module can be removed entirely before high-temperature and high-pressure sterilization, protecting core electronic components from sterilization damage and effectively extending equipment service life.


3. Easy Maintenance & Optimized After-sales Service
The combined control and battery module is effortlessly detachable. Control system faults only require modular replacement, eliminating the need for full-device factory return and disassembly. This resolves cross-border shipping difficulties, saves transportation time and costs, and greatly improves after-sales efficiency.

4. Reciprocating Saw Advantages
High reciprocating frequency shortens surgical duration and ensures efficient cutting. The uniquely designed double-row saw teeth deliver excellent wear resistance and lower usage costs. The optimally matched hardness, toughness and dimensional parameters enable ultra-flat cutting sections.
