DJGZ-I

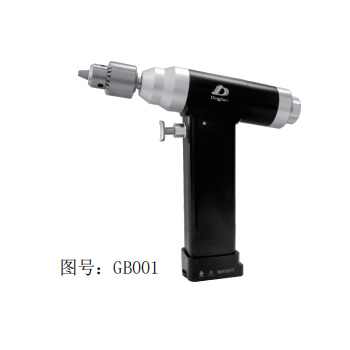

Dingjian Medical Devices (Suzhou) Co., Ltd., a professional Chinese manufacturer of orthopedic medical devices, proudly presents the Orthopedic Bone Drill DJGZ-I—a cutting-edge surgical tool engineered for precision, reliability, and safety in orthopedic procedures. This surgical bone drill integrates advanced motor technology, user-centric design, and strict medical standards to meet the demanding needs of hospitals, clinics, and orthopedic centers worldwide. With stepless speed regulation, bidirectional rotation, and wide compatibility with drill bits, the DJGZ-I sterilizable bone drill delivers consistent performance, ensuring surgeons can focus on achieving optimal surgical outcomes while adhering to hygiene protocols.
The Orthopedic Bone Drill boasts a maximum rotational speed of 1200rpm with smooth stepless speed regulation, allowing surgeons to fine-tune the speed according to bone density—from delicate drilling in cancellous bone to robust operation in cortical bone. The added bidirectional rotation function enables both forward drilling and reverse withdrawal, reducing tissue damage and enhancing operational flexibility during complex procedures.
Equipped with a high-precision clamping mechanism, this bone drill offers a clamping range of Φ0.8-8mm, accommodating most standard orthopedic drill bits. Whether for small-scale bone pin insertion or large-diameter hole drilling, the secure clamping design prevents drill bit slippage, ensuring consistent accuracy and minimizing surgical risks.
Featuring a green and environmentally friendly battery, the DJGZ-I eliminates the need for frequent battery disinfection—saving valuable surgical preparation time and reducing cross-contamination risks. The battery’s long-lasting performance supports uninterrupted operation throughout lengthy surgeries, making it a reliable choice for high-volume clinical settings.
The main unit adopts a one-piece closed back cover structure, enhancing structural integrity, dust resistance, and durability. This design not only simplifies cleaning but also protects internal components from sterilization damage, extending the drill’s service life even with repeated high-temperature sterilization cycles.
Compliant with global medical hygiene standards, the entire Orthopedic Bone Drill can be sterilized at high temperatures. This critical feature ensures complete pathogen elimination, safeguarding patient safety and meeting the strict sterilization requirements of invasive orthopedic surgeries.
Parameter | Details |
Model | DJGZ-I |
Rotational Speed | 0-1200 revolutions per minute (stepless regulation) |
Clamping Range | Φ0.8-8mm |
Battery Type | Green & environmentally friendly rechargeable lithium battery |
Sterilization Method | High-temperature sterilization (whole machine) |
Main Body Design | One-piece closed back cover |
Operation Mode | Forward/reverse rotation, manual speed adjustment |
Applicable Drill Bit Diameter | Φ0.8-8mm |
Power Source | Rechargeable battery (no disinfection required) |
Certification | Class I Medical Device Registration |
Weight | Lightweight (ergonomic design) |
Superior Precision: Stepless speed regulation and stable clamping ensure accurate drilling, avoiding accidental bone damage.
Time-Saving Efficiency: No battery disinfection needed and quick drill bit replacement streamline surgical workflows.
Versatile Application: Wide clamping range covers 90% of orthopedic drilling needs, reducing equipment costs.
Durable Construction: One-piece back cover and high-quality materials withstand frequent sterilization and heavy use.
User-Centric Comfort: Lightweight design and balanced weight distribution reduce surgeon fatigue during long procedures.
Compliance & Safety: Class I Medical Device certification and high-temperature sterilization meet global medical standards.
Ideal for drilling pilot holes for screws, plates, or nails in open or minimally invasive fracture surgeries, ensuring stable bone fixation and promoting faster healing.
Precise drilling around tumor sites facilitates safe and complete tumor removal while preserving healthy bone tissue, supporting minimally invasive oncology procedures.
Assists in preparing bone surfaces and drilling implant holes for hip, knee, or shoulder replacement, ensuring proper implant placement and long-term stability.
Suitable for bone grafting, spinal fusion, and congenital bone defect repair, providing reliable drilling performance for complex reconstructive tasks.
Dingjian Medical offers tailored customization service to meet unique clinical needs:
Adjust rotational speed range and clamping capacity for specialized surgeries.
Customize battery capacity for extended operation in high-volume facilities.
Branding customization (logo, color) for hospital chains or distributors.
Modify handle design for enhanced ergonomics in specific surgical settings.
Tailored packaging for international shipping or local market requirements.
