The primary failure mode for reusable surgical power tools is not mechanical wear. Instead, internal component degradation caused by fluid ingress and repeated sterilization cycles destroys these devices. Engineering or procuring a Medical Electric Drill requires balancing absolute hermeticity with thermal management, dynamic mechanical movement, and stringent regulatory compliance. Failure to specify the correct sealing architecture leads to premature motor failure, battery short-circuits, and compromised patient safety. This technical evaluation breaks down the primary sealing methodologies, material trade-offs, and validation frameworks required to protect internal components and maximize the operational lifespan of surgical drills. We will examine the exact mechanisms of seal failure in the field and outline the engineering countermeasures necessary to build a resilient, reliable surgical instrument.
Sterilization is the Primary Threat: Autoclave cycles (high-pressure steam up to 134°C) degrade standard elastomers rapidly; sealing designs must account for thermal expansion and chemical breakdown.
Dynamic vs. Static Trade-offs: Protecting the rotary shaft of a sealed orthopedic drill introduces friction, which directly impacts the efficiency and run-time of battery powered surgical drills.
Shaft Protection is Paramount: High-hardness shaft coatings (e.g., Diamond-Like Carbon) are required to prevent dynamic PTFE seals from grooving the mating shaft over time.
Magnetic Couplings Provide a Sealless Alternative: Eliminating dynamic seals entirely via magnetic torque transfer offers absolute hermeticity but introduces torque density and weight trade-offs.
Validation Requires Accelerated Testing: Procurement and engineering decisions must rely on empirical leak-testing and accelerated aging data, not theoretical IP ratings alone.
Repeated steam sterilization places immense physical stress on surgical equipment. Autoclaves utilize deep vacuum phases followed immediately by high-pressure steam injection. Temperatures routinely reach 134°C (273°F) for extended exposure times. These extreme conditions force metal housings and elastomeric seals to expand and contract at different rates due to their differing coefficients of thermal expansion. This thermal cycling tests the absolute limits of any sealing interface, often causing micro-tears in standard rubber compounds.
A critical phenomenon known as the pumping effect occurs during this sterilization process. Temperature fluctuations cause massive internal pressure changes within the drill housing. When the device cools during the drying phase, internal pressure drops rapidly. This creates a vacuum that draws moisture past inadequate or worn seals. Over time, this moisture accumulates inside the motor compartment. It corrodes copper stators, degrades delicate electronic components, and destroys bearing lubricants. To evaluate autoclave damage effectively, engineers typically follow these steps:
Conduct baseline pressure decay testing on the unsterilized unit.
Subject the device to 100 simulated autoclave cycles.
Perform a visual inspection of the dynamic seal lips under 40x magnification.
Re-run pressure decay testing to measure the exact loss of hermeticity.
Disassemble the unit to check for internal moisture pooling or oxidation.
Hospitals rely on aggressive chemicals to clean surgical tools before they even reach the autoclave. Alkaline enzymatic pre-cleaners often feature a pH greater than 10. These solutions break down bone fragments, fat, and biological matter effectively. However, they also attack standard elastomer seals. Prolonged exposure causes rubber components to swell, crack, or lose their original elasticity, leading to compression set failure.
Low-temperature sterilization methods present entirely different chemical challenges. Vaporized Hydrogen Peroxide (VHP) and Ethylene Oxide (EtO) are highly reactive sterilants used for heat-sensitive equipment. They degrade specific polymers, polyurethanes, and adhesives rapidly. Engineers must select sealing materials that withstand both high-heat steam and these harsh chemical sterilants without embrittlement. Material selection requires cross-referencing chemical compatibility charts with the specific cleaning protocols of the target hospital network.
The operating room exposes drills to a constant barrage of fluids. Saline solutions used for irrigation are highly corrosive to internal electronics. If saline breaches the housing, it rapidly attacks internal stators and rotors. Printed circuit board (PCB) components short out almost immediately upon contact with conductive fluids, rendering the tool useless mid-surgery.
Biological debris poses a severe mechanical threat to sealing systems. Bone fragments, coagulated blood, and tissue can accumulate around the rotary shaft. This debris acts as an abrasive paste, grinding against the sealing lip of dynamic rotary seals. Once the lip lifts or wears down, the sterile barrier fails. Fluids then bypass the primary defense mechanism, flooding the internal gearhead and motor assembly.
High-torque brushless DC motors generate significant heat during heavy bone drilling or reaming. This heat must escape the drill housing to prevent internal damage. A completely sealed, hermetic unit acts as a thermal insulator. Without proper thermal pathways, internal temperatures spike rapidly during heavy orthopedic procedures, potentially exceeding the safe operating limits of the motor magnets and control electronics.
Over-sealing creates a severe engineering conflict. It traps heat inside the device. This leads to internal overheating and premature battery degradation. Engineers must design housings that dissipate heat through the metal casing while maintaining a strict fluid barrier. Thermal potting compounds often bridge this gap, transferring heat from the stator to the external housing without compromising the seal.

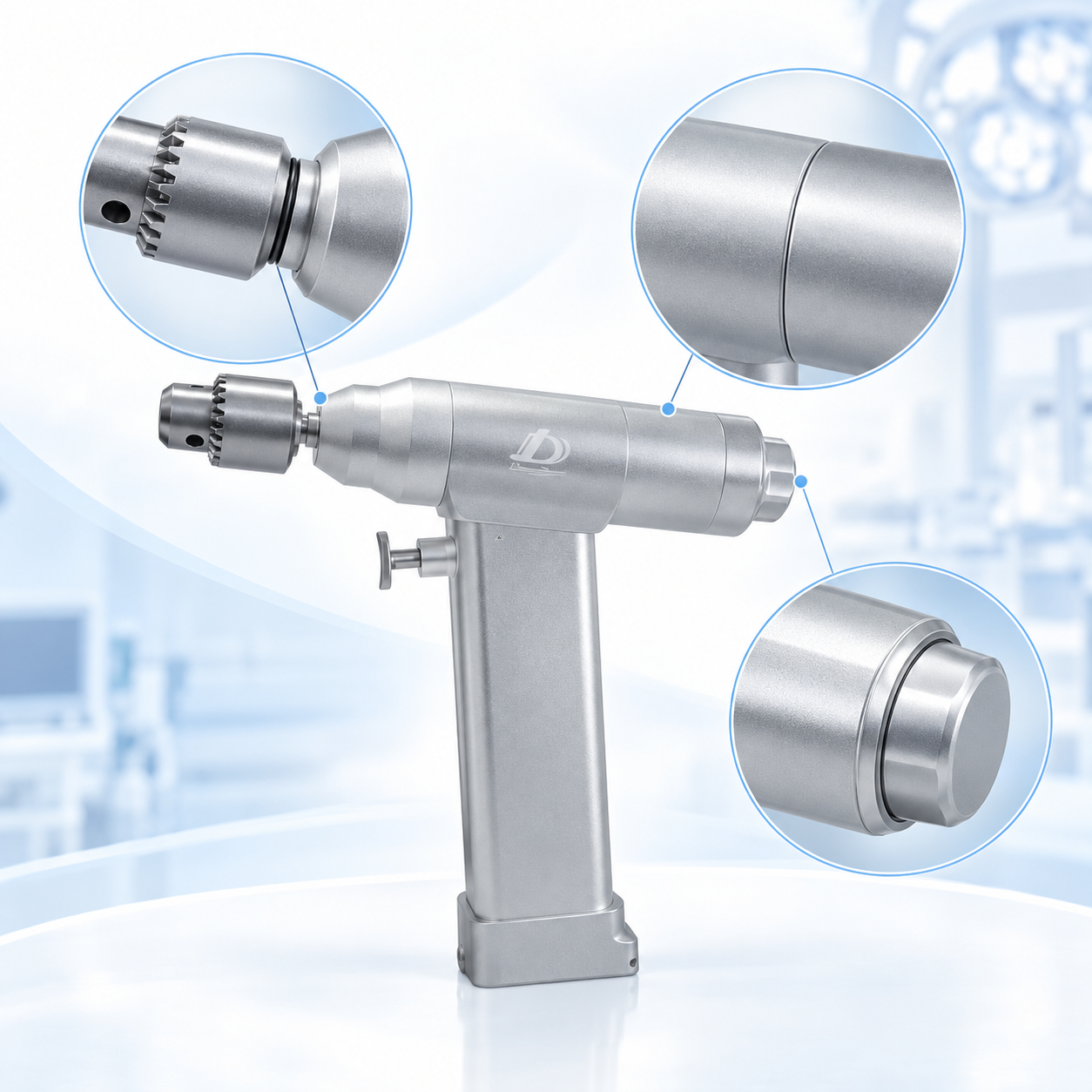

Protecting the rotating shaft is the most difficult sealing challenge in surgical tool design. Spring-energized PTFE lip seals excel in high-speed rotary applications. The internal metallic spring maintains constant radial pressure against the shaft, even as the PTFE material wears down over time. PTFE offers excellent chemical resistance and exceptionally low friction. This makes it ideal for surgical environments where high RPMs are standard.
Mating shaft hardness is critical for long-term success. A dynamic PTFE seal can easily groove a soft stainless steel shaft over time due to the constant radial pressure and microscopic debris. Engineers apply Diamond-Like Carbon (DLC) or Titanium Nitride (TiN) coatings to the shaft. These coatings provide extreme surface hardness, often exceeding 2000 HV. They prevent seal-induced shaft grooving, reduce friction, and extend the life of the tool significantly.
Standard elastomeric O-rings fail rapidly in dynamic environments. They generate high friction, heat up, and wear out at surgical speeds. Labyrinth seal designs offer a non-contact alternative. They use complex, tortuous paths to block fluid ingress. When combined with positive internal pressure mechanisms, labyrinth seals prevent fluid entry without adding any mechanical friction to the drivetrain.
Magnetic couplings eliminate the need for dynamic shaft penetrations entirely. They transfer torque through a solid, non-magnetic containment barrier, typically made of titanium or PEEK. A synchronous magnetic field connects the internal motor rotor to the external chuck assembly. This design achieves absolute hermeticity, as there is no physical hole in the housing for a shaft to pass through.
However, magnetic drives introduce specific physical trade-offs. They require larger outer diameters to house the heavy rare-earth magnets. This increases the overall weight and bulk of the tool, which can cause surgeon fatigue. Torque slip is another limitation. If the surgical load exceeds the magnetic coupling strength during a heavy reaming procedure, the drive slips and stalls. Engineers must balance zero-leakage security against these physical constraints.
Feature | Dynamic PTFE Lip Seals | Magnetic Couplings |
|---|---|---|
Hermeticity Level | High (Subject to wear) | Absolute (Zero leakage) |
Friction & Drag | Moderate to High | Zero (Non-contact) |
Torque Transfer | Direct / No Slip | Limited by magnetic strength |
Weight Impact | Minimal | Significant increase |
Maintenance Needs | Periodic replacement | Virtually maintenance-free |
Static seals protect the joints between housing components, such as battery caps and motor enclosures. Clamshell or cylindrical housing joints rely on crushed metal gaskets or high-temperature elastomeric O-rings. These seals must maintain compression during extreme thermal expansion in the autoclave, ensuring the gap between metal parts remains sealed even when the housing flexes.
Surface finish and gland design are vital for static seals. A rough machined surface allows micro-leaks to form when the metal expands under heat. The gland must provide enough space for the O-ring to swell thermally without extruding out of the joint. Precision machining prevents these micro-leaks and ensures the static barrier remains intact through hundreds of sterilization cycles.
Primary mechanical seals can and do fail in the field. Secondary protection is necessary to prevent catastrophic electrical damage. Epoxy and silicone potting compounds encapsulate stators, wiring harnesses, and PCBs. They create a solid, waterproof block around sensitive electronics, displacing any air where moisture could condense.
Potting acts as a fail-safe mechanism. It is not a replacement for mechanical sealing. If fluid breaches the main housing, the conformal coating prevents immediate short circuits. This allows the tool to finish the surgery safely before requiring maintenance. It also provides excellent vibration dampening for the internal electronics.
A battery powered surgical drill requires specialized, uncompromising protection. Lithium-ion battery cells react violently to moisture and heat. Laser welding provides true hermeticity for battery enclosures, fusing the metal casing into a single continuous barrier. Glass-to-metal seals protect critical electronic compartments and connection pins where power transfers from the battery to the motor.
Hermeticity prevents lithium-ion battery outgassing from escaping into the sterile field. It also stops moisture-induced short circuits inside the pack. A compromised battery pack poses a severe fire risk in the operating room. Strict hermetic sealing, verified by helium leak testing, is non-negotiable for any reusable power source in a surgical setting.
Standard IPX7 or IPX8 ratings test static water submersion at room temperature. They do not reflect the dynamic, high-temperature reality of the operating room or the CSSD. An IPX8 rating guarantees the drill survives sitting in a bucket of cold water. It says absolutely nothing about surviving a 134°C steam autoclave or resisting highly alkaline enzymatic cleaners.
You must establish criteria for evaluating OEM test data beyond basic IP compliance. Demand data on dynamic testing. Ask how the seals perform while the shaft rotates under a heavy side-load. Real-world surgical conditions require specialized validation that standard industrial ingress protection ratings simply ignore. Relying on IP ratings alone will result in premature field failures.
Selecting the right elastomer is a complex material science problem. Different materials react differently to hospital environments. FKM (Viton) offers good chemical resistance but struggles with high-temperature steam. Silicone handles heat well but degrades quickly when exposed to certain harsh detergents.
You must evaluate resistance to aggressive hospital central sterile services department (CSSD) detergents. Furthermore, any sealing material exposed to the sterile field must meet ISO 10993 biocompatibility requirements. This includes rigorous testing for cytotoxicity, sensitization, and systemic toxicity to ensure no harmful chemicals leach from the seal into the patient's surgical site.
Engineering documentation must prove the sealing architecture survives repeated cleaning. ISO 17664 and AAMI TIR12 dictate reprocessing validation standards. You must demonstrate that the device undergoes disinfection cycles without harboring bioburden. To achieve this compliance, engineering teams must execute the following validation steps:
Inoculate the device with a known quantity of highly resistant test organisms.
Allow the bioburden to dry on the device, simulating worst-case surgical delays.
Perform the exact manual cleaning steps outlined in the Instructions for Use (IFU).
Run the device through the automated washer-disinfector cycle.
Extract residual matter from the seals and culture it to verify a 6-log reduction in bacteria.
Seals with deep crevices or exposed springs trap bacteria. Regulatory bodies scrutinize these designs heavily. The sealing architecture must be flush, cleanable, and resilient to standard hospital protocols.
Multi-stage sealing systems offer excellent protection but increase assembly complexity on the factory floor. Precision alignment is required to prevent damaging delicate lip seals during manufacturing. If a technician rolls an O-ring or scratches a PTFE lip during assembly, the seal is compromised before it ever leaves the facility. You must assess this assembly complexity early in the design phase.
Evaluate the cost-to-benefit ratio of custom-molded seals versus off-the-shelf medical-grade components. Custom seals optimize space and performance, allowing for sleeker drill designs. However, they introduce supply chain risks and higher upfront tooling costs. Off-the-shelf options simplify manufacturing and sourcing but may require housing design compromises to fit standard seal dimensions.
There is a direct, inverse relationship between aggressive dynamic sealing and motor efficiency. High lip pressure prevents fluid ingress effectively. However, it creates significant mechanical drag on the rotating shaft. This friction forces the motor to draw more current to maintain the required surgical RPM.
Increased seal friction drains batteries faster. It reduces the operational run-time of the device, potentially requiring battery swaps mid-surgery. Furthermore, this friction generates localized heat at the shaft, which can burn patient tissue if the drill snout gets too hot. Engineers must balance the need for a tight fluid barrier with the electrical efficiency requirements of a portable surgical tool.
Advanced drills incorporate predictive diagnostics into their motor controllers. As a dynamic seal wears down, friction levels change. This alters the motor current draw signature. By monitoring these electrical changes in real-time, the system can predict seal wear before fluid ingress actually occurs.
Temperature profiles also provide valuable diagnostic data. A sudden spike in shaft temperature indicates increased seal friction, lack of lubrication, or impending mechanical failure. Implementing these monitoring systems allows hospitals to schedule maintenance proactively, preventing catastrophic intraoperative failures and improving overall equipment reliability.
Evaluate the long-term maintenance frequency of drills requiring factory rebuilds. Degraded seals eventually need replacement. Sending a sealed orthopedic drill back to the manufacturer for a rebuild disrupts hospital workflows and requires keeping a larger inventory of backup devices.
The industry is moving toward modular designs to combat this issue. In these systems, the sealed motor and battery unit is isolated from the mechanical gearhead. The gearhead takes the brunt of the physical abuse and fluid exposure. Isolating the sensitive electronics reduces the frequency of complex factory repairs and allows hospitals to swap out mechanical attachments easily.
Regulatory submissions often stall during cleaning and sterilization validation. The FDA scrutinizes 510(k) pathways for reusable surgical tools heavily. Common points of failure include inadequate bioburden reduction data and material degradation after simulated aging. If your seals break down during testing, the submission is rejected.
You must maintain strict documentation for seal material traceability. USP Class VI compliance is mandatory for materials contacting the patient or sterile field. Without this documentation, regulatory bodies will reject the submission, delaying market entry by months or years. Ensure your seal suppliers provide full material certifications with every batch.
Theoretical calculations are insufficient for medical devices. You must define rigorous testing frameworks. Helium leak testing identifies microscopic breaches in hermetic battery enclosures, detecting leak rates as low as 10^-9 atm cc/sec. Pressure decay testing verifies the integrity of the main motor housing on the assembly line.
Simulated autoclave cycling is critical. Subject the device to 500 or more cycles to observe real-world degradation. Mitigate risk by demanding empirical data on seal degradation curves from your suppliers. Do not rely on baseline material spec sheets, as they rarely account for the combined effects of heat, pressure, and harsh chemicals.
Prioritize multi-stage dynamic seals with spring-energized PTFE and hardened shaft coatings for heavy-duty orthopedic applications.
Demand true hermetic isolation, utilizing laser welding or glass-to-metal seals, for any battery-powered surgical unit.
Require specific autoclave cycle lifecycle data from OEMs rather than relying on standard IPX ratings.
Consult with specialized medical seal engineers during the early prototyping phase to avoid costly redesigns.
Implement rigorous pressure decay testing and helium leak testing in your QA process to ensure consistent manufacturing quality.
A: While IPX7 or IPX8 ratings are common for basic liquid ingress protection, they are insufficient for surgical drills. These ratings only test static water submersion at room temperature. They do not account for the high-pressure steam and extreme temperatures of an autoclave. Specific autoclave-resistant validation is required.
A: Autoclaves cause severe thermal expansion mismatch between metal housings and elastomer seals. The rapid heating and cooling cycles degrade the rubber. Combined with high-pressure steam and deep vacuum phases, this process causes chemical breakdown, loss of elasticity, and eventual seal failure.
A: Spring-energized PTFE (Teflon) and high-performance perfluoroelastomers (FFKM) are the best choices. PTFE offers exceptionally low friction, preventing shaft wear, while maintaining high thermal stability and chemical resistance against harsh hospital sterilants.
A: Standard O-rings generate too much friction when compressed against a high-speed rotating shaft. This friction causes rapid material wear, generates excessive heat, and quickly compromises the sterile barrier during surgical procedures.
A: A magnetic coupling transfers torque through a solid metal or ceramic barrier using magnetic fields. This entirely eliminates the need for a hole in the housing and a dynamic shaft seal, providing absolute, zero-leakage hermetic protection for the internal motor.
A: PTFE is chemically inert but can be mechanically abrasive under pressure. If the metal shaft is too soft, the dynamic PTFE lip seal will carve a groove into the metal over time. Hardened coatings like Diamond-Like Carbon prevent this wear.
